Indo Wedge Anchors - IWA

download pdf

Characteristic Resistances

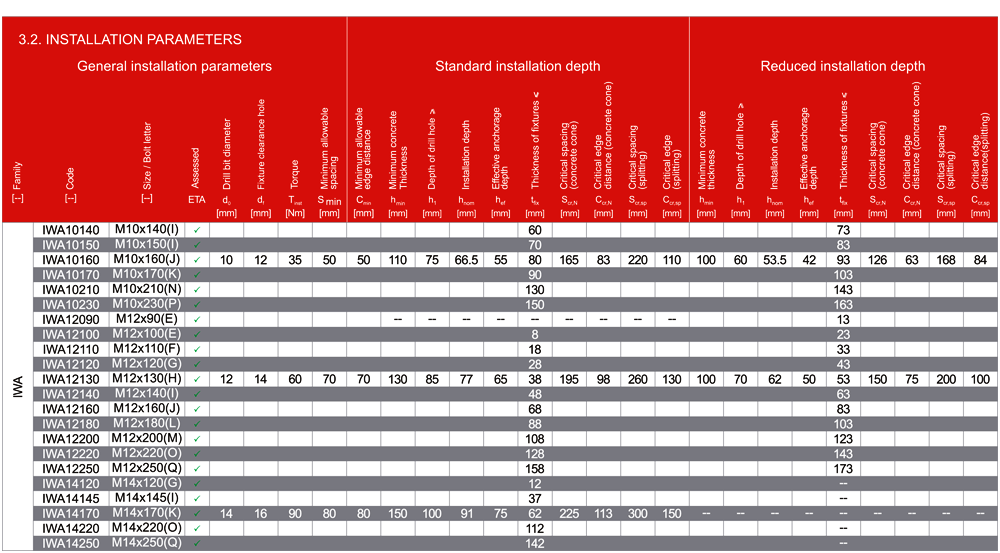

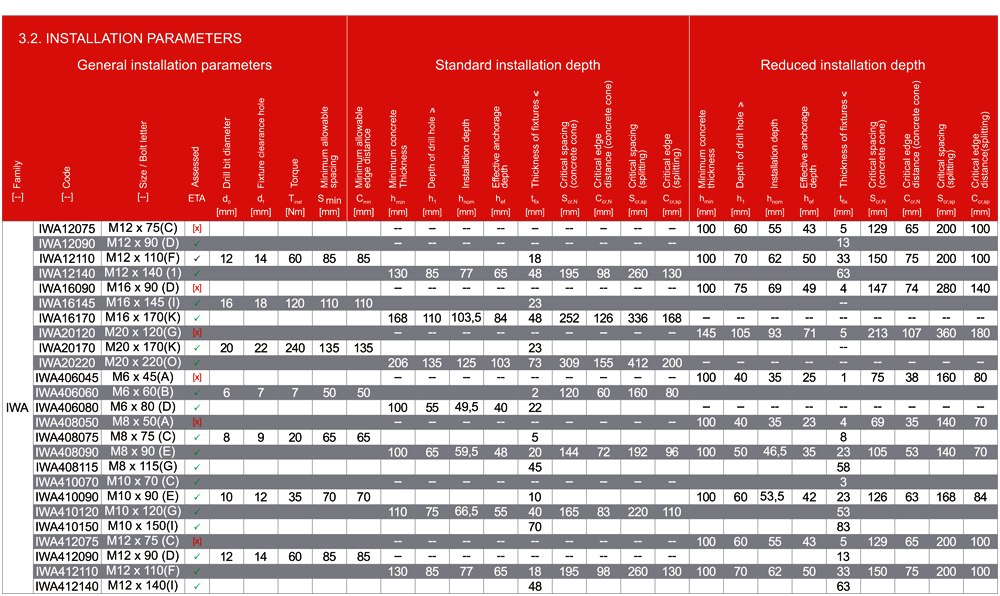

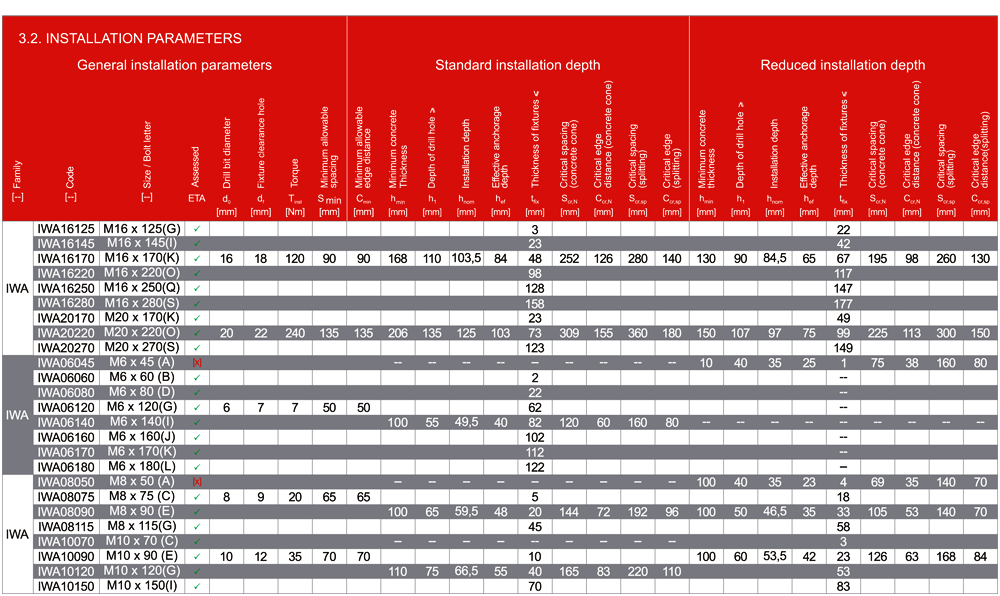

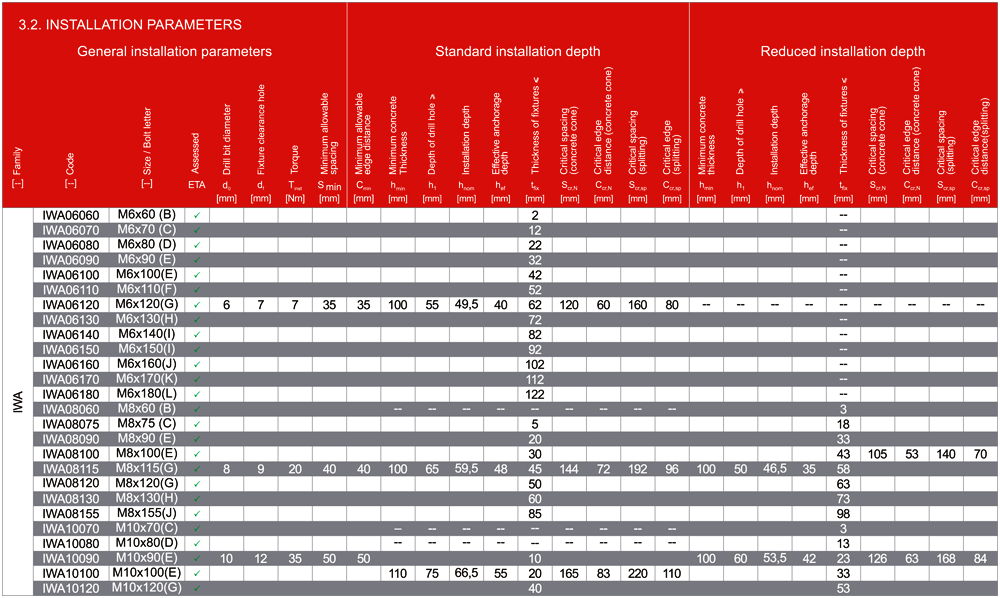

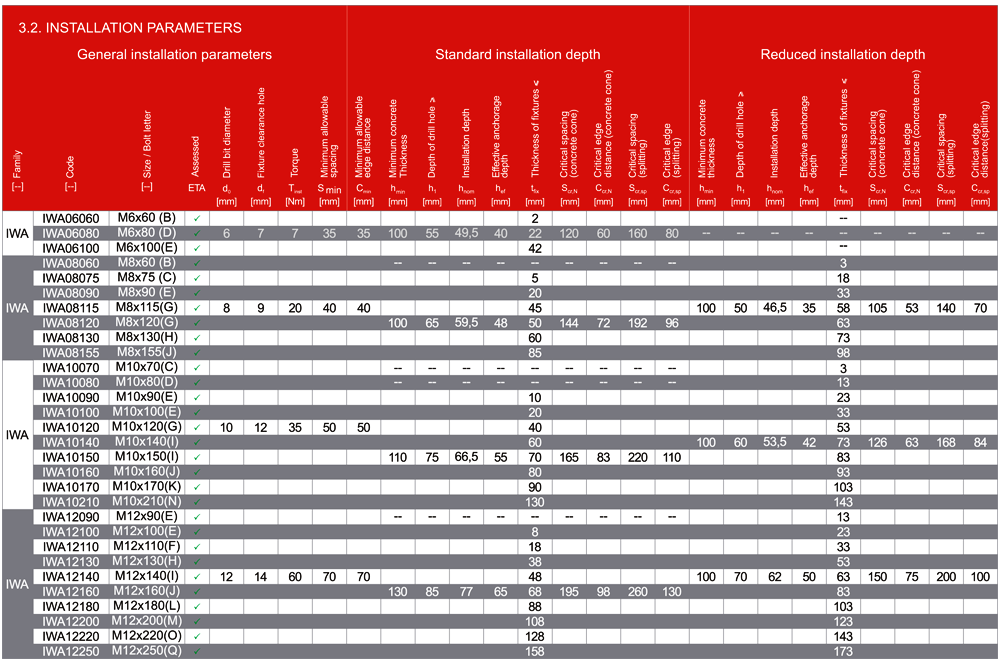

Characteristc Resistance* in concrete CO2/25** for an isolated anchor (without spacing & edge distances effects) are as per this table:

metric

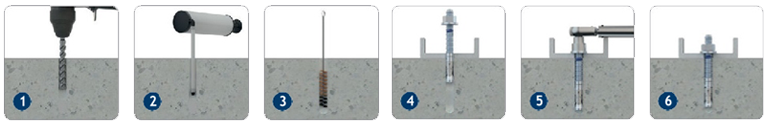

• Roughness working principle; installation by controlled torque
• Use for high loads
• Assessed for two installation depths
• Easy installation
• Use in non-cracked concrete
• Previous installation, or through the fixture
• Use for static or quasi-static loads
• Three versions zinc plated, stainless steel A2 and A4
• Variety of lengths and sizes, assembly flexibility
• DIN 440 for fixing wood structures to concrete

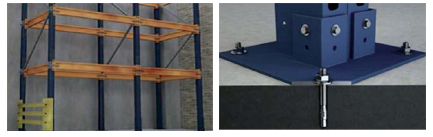

• Structural application in non cracked concrete

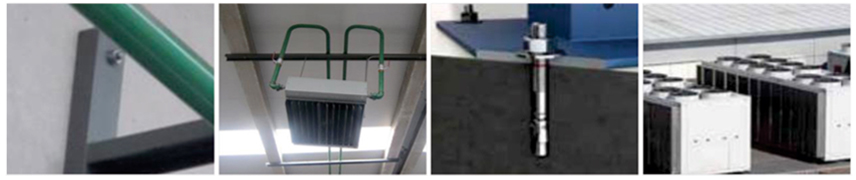

• Safety barriers
• Billboards, machinery, boilers, signals & steel beams
• Fixing wood structure in concrete

application iwa
iwa1

iwa-specification



Indo Wedge Anchors
