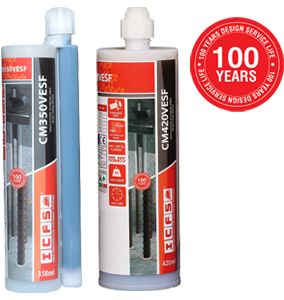

Chemical Mortars - CM350VESF

Vinleyster Styrene Free

• ETA according to EAD 330499-00-0601 (Option 7: Uncracked Concrete)
• ETA according to EAD 330076-00-0604 (Masonry)
• ETA according to EAD 330087-00-0601 (TR023: Rebar Connections)
• 50 years service life
• A+ French VOC (Emissions Class)
• LEED Tested

ce

theraded rod theraded rod theraded rod

• Anchors may be placed close to free edges
• Ideal for overhead applications
• Suitable for dry, wet & flooded holes without loss of performance
• Reduced drilling diameters i.e. M20 only requires a 22mm hole & M24 requires only a 26mm hole making it an economical injection system
• Variable embedment depths
• Available in co-axial cartridges side by side cartridges (345 ml ), and single piston foil pack cartridges ( 300 ml)
• Ratio of 10:1
• Available in grey resulting colours

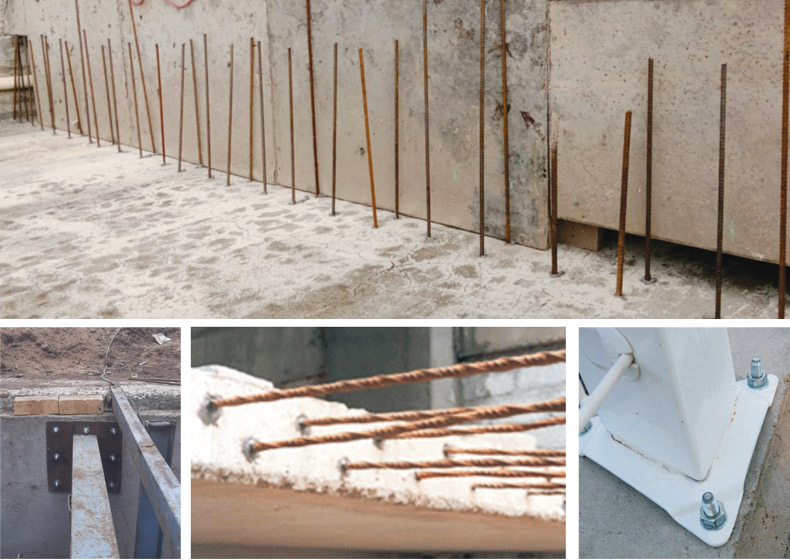

• Canopies- Ventilated Facades
• Railings
• Bicycle Racks
• Balcony Fences
• Hand Rails
• Machinery

cm350vesf

chemical mortars installation
chemical mortars cm350p

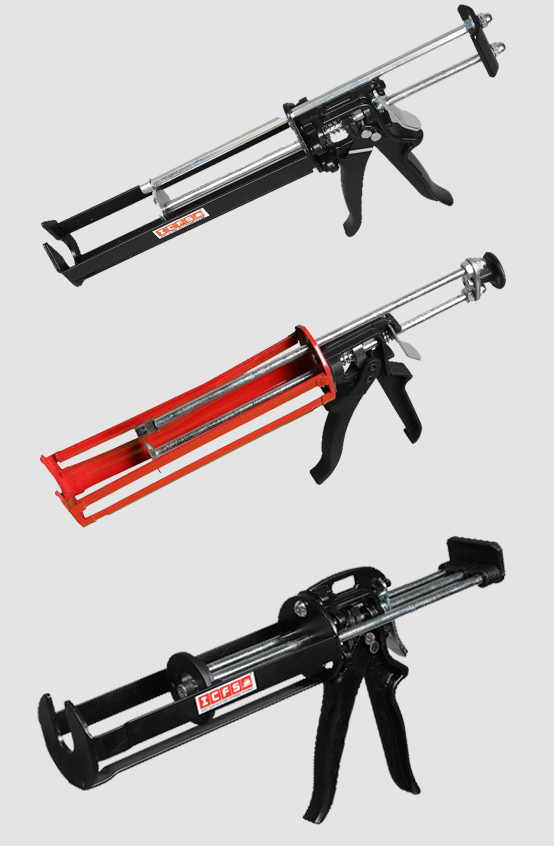

Dispenser DM 300 - Steel body and mechanism

chemical-guns
Description
The professional dispenser DM300 for use with chemical mortar cartridges CM350P & CM350VESF

Variant 300ml 10:1 ratio cartridge, Material Steel body and mechanism
dm410


Chemical Anchor Accessories

blow out pump bp
Accessories for drill hole cleaning, Blow out pump BP

Description
The hand operated blow out pump BP is for drill hole cleaning prior to anchor installation.

Variant Hand Operated, Material ABS
bp280
Important note
Performance based on clean holes - Hammer drilled - blown and then brushed with a still metal brush & blown Cleaning Brush CB

cleaning brush
Description
Wire brush CB is for thorough cleaning and hole preparation

Variant Hand Operated, Material Steel Body and Head
product-code


Mixer Nozzle MN - Plastic

mixer-nozzle-mn
Accessories for drill hole cleaning, Blow out pump BP

Description
Spare mixer nozzle for use with chemical mortar cartridges CM300PESF, CM350VESF & CM400PE

Variant CO-axial, Material Plastic
product-code

download pdf

download pdf

download pdf
download pdf
