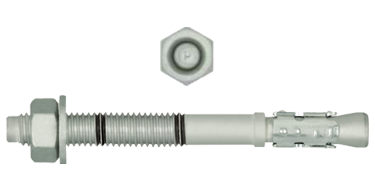

The Indo Prime Bolt Zone (IPBZ DP) is a high-performance through-bolt anchor fastener with a unique corrosion-resistant ZINC FLAKE coating. Designed for use in cracked and non-cracked concrete, it provides reliable mechanical anchoring for a wide range of construction applications. Its design allows direct drilling through fixtures, reducing installation time, and embedment depth markings ensure precise placement. IPBZ DP anchors are fire-resistant up to 120 minutes and suitable for seismic zones (C1 & C2).
• Zinc flake coating for corrosion resistance
• High performance in cracked and non-cracked concrete (ETA Option 1)
• Maximum load capacity with high-quality standards
• Fire-resistant up to 120 minutes
• Reduced embedment design avoids contact with reinforcement
• Embedment depth markings for precise installation
• Quick installation directly through fixtures
• Suitable for earthquake risk zones (seismic category C1 & C2)
• Supports heavy structural and architectural loads
Suitable Base Materials
• Cracked concrete (M20/25-M50/60)
• Non-cracked concrete (M20/25-M50/60)
• Reinforced and unreinforced concrete
• Natural stone (after site testing)
• Drill a hole of the required diameter and depth.
• Clear the hole of drilling dust and debris using a blow pump or equivalent.
• Lightly tap the through bolt through the fixture into the hole until the fixing depth is reached.
• Tighten to the recommended torque.
Advantages for Engineers & Installers
• Reduces installation time due to through-fixture drilling
• Provides consistent, reliable mechanical anchoring
• Works in both standard and reduced embedment depths
• Suitable for fire-resistant and seismic-critical applications
• Supports structural and architectural loads reliably

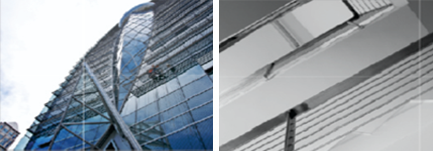

• Cladding restraints
• Consoles and barriers
• Structural steel fastening
• Structural steel connections
• Curtain walling
• Handrails and balustrading
• Heavy plant installations
• Passenger lifts and facades
• Racking systems and platforms
• Fencing and gates manufacturing & installation
• Anchor diameters: M8, M10, M12, M16, and M20
• Standard embedment depths: 50-120 mm depending on size
• Reduced embedment options available for select sizes
• Tension and shear load values available for both cracked and non-cracked concrete
• Characteristic resistance for fire exposure (30-120 min)
• Allowable resistance in seismic performance categories C1 & C2
• ETA certified (ETA 23/0866)
• Approved for use in seismic and corrosive environments
• Brand: ICFS
• Product Code: IPBZ DP
• Zinc flake coated through-bolt version for corrosion resistance
• Available in multiple diameters and lengths for versatile applications
